Introduction
Running out of warehouse space? Struggling with rising labor costs and slow order handling? An ASRS shuttle can help you store more goods in less space and move pallets more efficiently.
By combining shuttle vehicles, storage racks, lifting equipment, and control software, these systems automate pallet storage and retrieval. Depending on the design, they can also work with stacker cranes or conveyors to improve warehouse efficiency.
But which type of shuttle-based AS/RS is right for your warehouse? Let’s look at how these systems work, their key benefits, and the main types available.
What Is an ASRS Shuttle?
An ASRS shuttle is an automated storage and retrieval system that uses shuttle vehicles to move pallets or goods within storage racks. Depending on the design, the system may also include stacker cranes, lifts, conveyors, and warehouse control software.
Here’s how it works: pallets enter the system through an inbound station, and shuttle vehicles move them to assigned storage locations. When goods are needed, the system retrieves the required pallets and transfers them to the outbound station. This reduces manual handling and makes better use of warehouse space.
Unlike a basic shuttle racking system that still relies on forklifts for pallet handling, a fully automated ASRS shuttle can integrate with lifting and conveying equipment to automate more of the storage and retrieval process.
Benefits of an ASRS Shuttle
1. Maximize Warehouse Storage Space
An ASRS shuttle uses dense storage layouts to reduce the need for forklift aisles. This allows you to store more pallets within the same warehouse footprint and make better use of available space. It can be a practical option when expanding your existing warehouse is difficult or costly.
2. Improve Storage and Retrieval Efficiency
Shuttle vehicles automate pallet movement within storage racks, reducing manual handling and helping goods move more efficiently. When integrated with lifts, conveyors, and warehouse management software, the system can coordinate storage and retrieval tasks, improve inventory tracking, and support FIFO (first in, first out) where the system design allows.
3. Reduce Labor Costs and Handling Risks
Automating repetitive pallet movements reduces the need for manual handling and frequent forklift operations inside storage areas. This can lower labor requirements and help reduce the risk of collisions and pallet damage. Automated equipment also supports consistent operations during extended shifts, depending on the system configuration and maintenance plan.
Applications of an ASRS Shuttle
An ASRS shuttle can be used in a range of industries where storage space, inventory control, and pallet handling efficiency are important.
- Manufacturing: Store raw materials, components, and finished goods in an organized layout, making it easier to manage inventory and supply production lines.
- E-commerce and Distribution: Handle large pallet volumes and support frequent inbound and outbound operations in distribution centers.

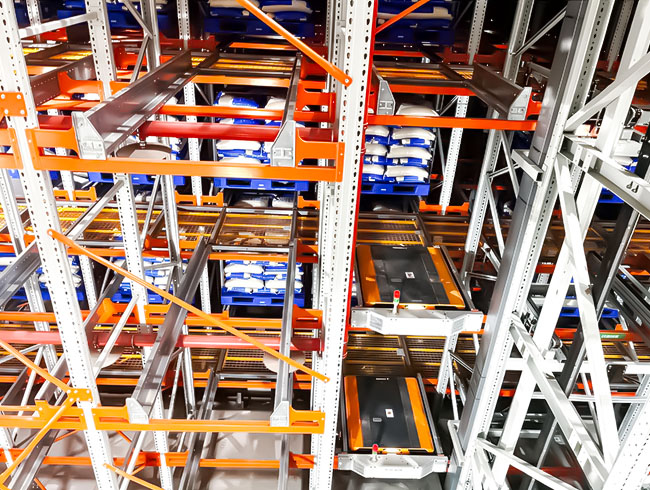

- Cold Storage: Reduce the need for workers to enter low-temperature storage areas. Systems designed for environments as low as -25°C can support frozen food and other temperature-sensitive goods.
- Pharmaceuticals: Track pallet locations and inventory batches more accurately, helping warehouses manage stock rotation and expiration dates.
The right solution depends on your pallet volume, throughput requirements, available building height, and inventory flow. Modular designs can also make it possible to expand storage capacity or upgrade an existing warehouse in stages. Integration with WMS, WCS, or ERP software can further improve inventory visibility and coordinate warehouse operations.
Types of ASRS Shuttle Systems
ASRS shuttle systems come in different configurations, depending on how pallets move between storage locations and inbound or outbound stations. The four common options below range from semi-automated shuttle racking to fully automated storage systems.
1. Semi-Automated Shuttle Racking

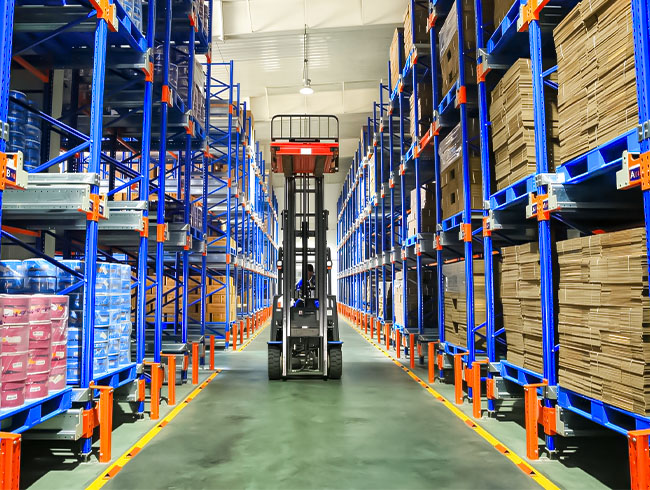

This system combines shuttle racking with a shuttle vehicle and a forklift. The shuttle moves pallets along the rack lanes, while a forklift handles pallet loading and unloading at the rack entrance.
It is a practical choice for warehouses that want to increase storage density and reduce forklift travel inside rack lanes without investing in a fully automated warehouse.
2. Mother-and-Child Shuttle System

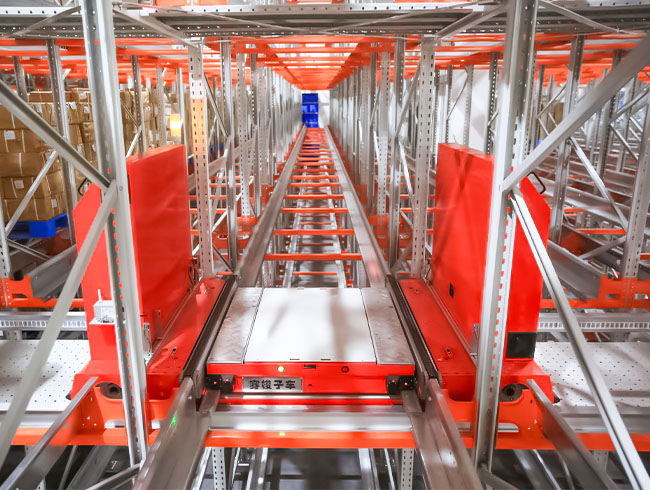

A mother-and-child shuttle system uses two types of vehicles. The mother shuttle travels along the main aisle, carrying the smaller child shuttle, which moves into the rack lanes to store or retrieve pallets.
With lifts added, the system can serve multiple storage levels. It is suitable for warehouses that need denser storage and more automated pallet handling than basic shuttle racking can provide.
3. Stacker Crane and Shuttle System

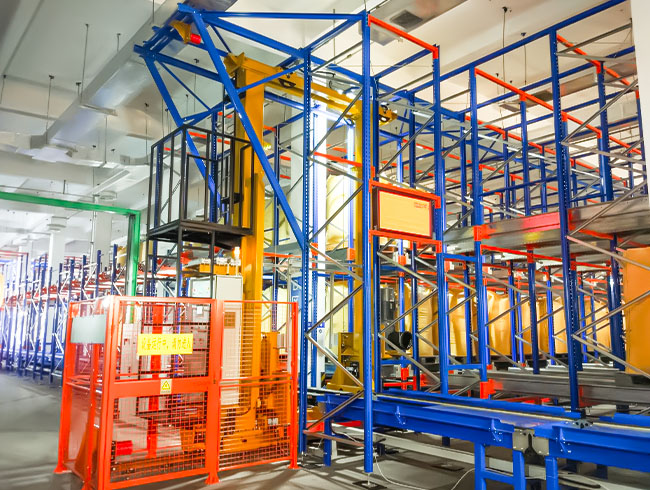

This configuration combines shuttle racking with an automated stacker crane. The crane moves pallets between the inbound or outbound station and the storage aisles, while shuttle vehicles handle pallet movement within the rack lanes.
By dividing transport tasks between the crane and the shuttles, the system can support high-density storage and automated pallet handling. It is worth considering when a warehouse needs a more integrated AS/RS solution.
4. Four-Way Shuttle AS/RS

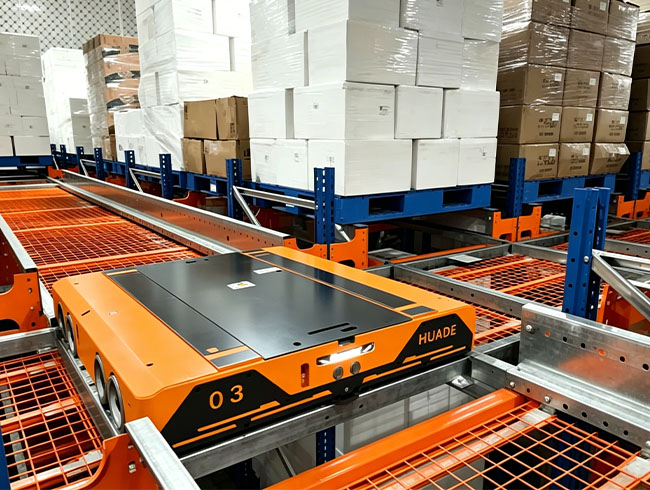

A four-way shuttle system uses intelligent shuttle vehicles that can travel in four directions along a compatible rack and rail layout. This allows vehicles to move between storage lanes and access different pallet locations on the same level.
When combined with lifts, the system can move pallets between multiple levels, offering flexible storage allocation and automated retrieval. It is particularly useful for warehouses that need high storage density, flexible routing, and scalable automation.
How to Choose the Right ASRS Shuttle System
The right ASRS shuttle depends on your storage needs, handling requirements, and budget. Before choosing a system, consider these four factors:
- Storage Capacity: If maximizing pallet storage in limited space is your priority, consider a high-density shuttle racking layout or a four-way shuttle AS/RS.
- Throughput Requirements: If your warehouse handles a high volume of inbound and outbound pallets, evaluate the required handling rate and whether shuttle vehicles, stacker cranes, and conveyors can meet peak demand.
- Automation Level: If you want to keep using forklifts, semi-automated shuttle racking may be sufficient. For less manual handling, consider integrating shuttles with lifts, stacker cranes, and conveyors.
- Warehouse Conditions: Building height, temperature, pallet dimensions, load weight, and existing equipment all affect system design. Make sure the selected solution meets your site requirements and future expansion plans.
A warehouse simulation and layout assessment can help compare different configurations before investment. By evaluating storage capacity and throughput together, you can select an ASRS shuttle solution that fits your current operations and future growth.
Conclusion
An ASRS shuttle can help warehouses increase storage density, improve pallet handling, and reduce reliance on manual operations. From semi-automated shuttle racking to four-way shuttle and stacker crane-integrated systems, each configuration offers different capabilities.
The key is to choose a solution that matches your storage needs, throughput targets, and warehouse conditions. HUAYIDE provides automated storage and retrieval solutions tailored to different warehouse requirements. Contact our team to discuss your project and explore a suitable layout for your facility.
