Introduction

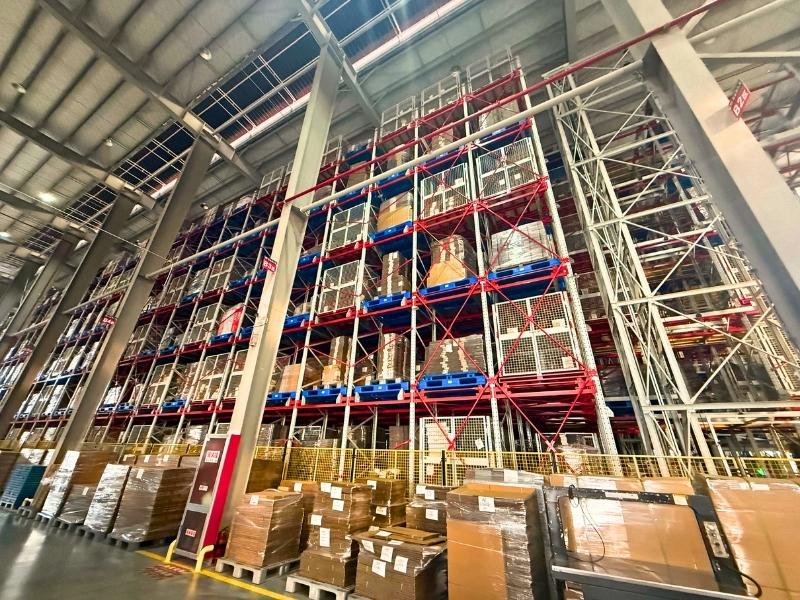

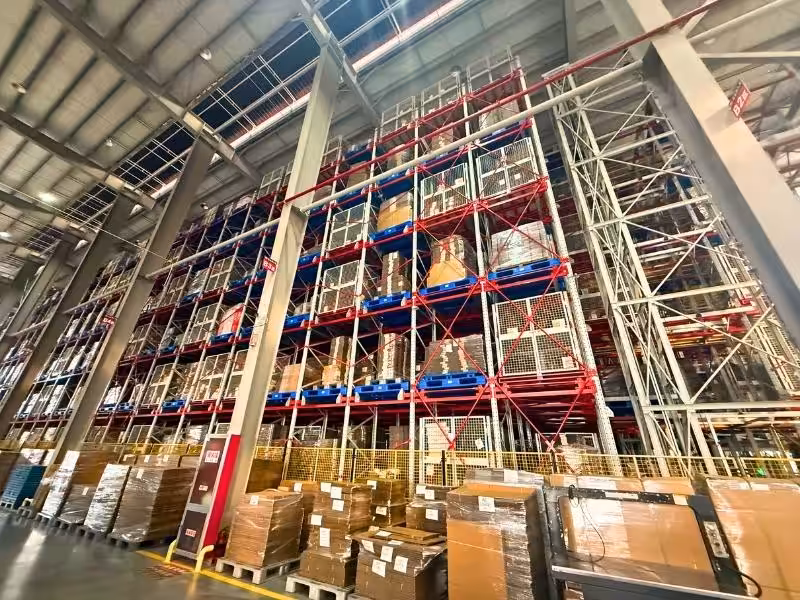

Unlike systems restricted to single-plane movement, our four way shuttle operate on a Cartesian coordinate system within the storage racking. At the heart of our solution lies a paradigm shift from linear conveyor logic to a dynamic, grid-based matrix. This grants them the unique ability to travel longitudinally and laterally across multiple levels without fixed transfer stations, accessing any storage location directly. The system comprises several seamlessly integrated components:

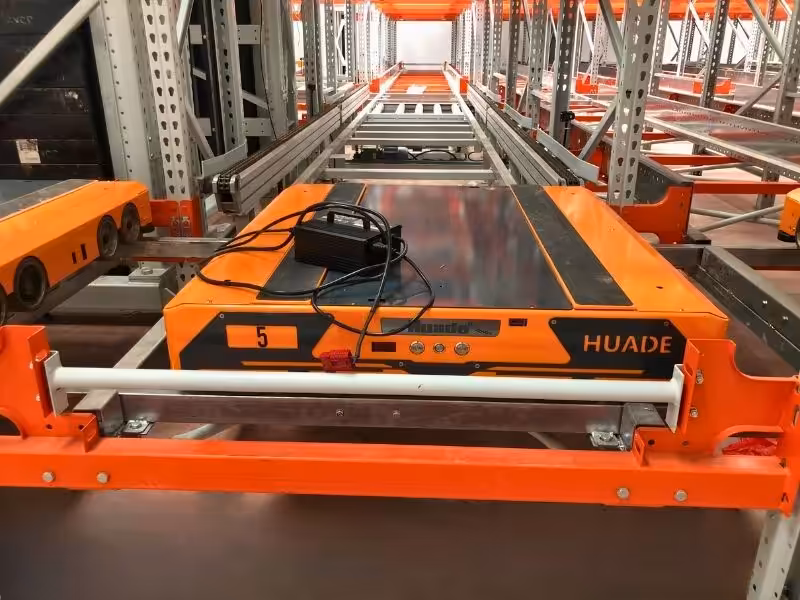

- The Intelligent Shuttle Vehicle: More than a simple cart, each shuttle is an autonomous robot on wheels. It is equipped with:
- On-board computing and RFID/bar-code scanning for real-time load identification.
- Advanced inertial guidance and optical sensors for pin-point navigation within the grid.
- A robust lifting mechanism for secure handling of pallets, totes, or custom containers.
- The Modular Grid Infrastructure: This includes the racking system designed with integrated rails on both X and Y axes, creating the “highways” for shuttle movement. The structure is engineered for ultra-high density and easy reconfiguration.
- The Central Brain: Synergy Ware Control Suite: This proprietary software layer is the system’s command center. It goes beyond basic traffic management to perform:
- Real-time task optimization: Dynamically assigning retrieval/store tasks to the nearest available shuttle based on real-time system status.
- Predictive analytics: Forecasting potential congestion and pre-emptively rerouting shuttles.
- Seamless WMS/ERP Integration: Acting as a sophisticated equipment interface, ensuring bi-directional data flow with your enterprise systems.
Transformative Advantages: Beyond Conventional Automation
The four-way shuttle architecture delivers a suite of competitive advantages that address the core pain points of modern warehousing:
- Ultimate Storage Density and Cube Utilization: By eliminating dedicated aisles for equipment travel, storage footprint is maximized. Shuttles utilize the very racking structure as their pathway, enabling storage densities up to 60% higher than traditional ASRS or reach truck-based systems.
- Unparalleled System Flexibility and Resilience: The grid layout and autonomous shuttles mean the system is not crippled by a single point of failure. If one shuttle requires maintenance, others instantly redistribute the workload. Routes can be reconfigured via software to adapt to seasonal peaks or changes in product velocity.
- Exceptional Scalability and Modular Growth: Expansion is remarkably straightforward. Adding storage capacity often involves simply extending the racking grid and introducing additional shuttles—a process with minimal disruption to ongoing operations, protecting your initial investment.
- Dramatically Enhanced Throughput and Order Accuracy: Direct, point-to-point movement minimizes travel paths and wait times. Parallel processing, where multiple shuttles operate simultaneously on independent tasks, accelerates batch picking and order consolidation. Integrated scanning at the shuttle level ensures 100% picking accuracy.
- Significant Reduction in Operational Costs: Automation reduces reliance on manual labor for picking and put-away. The system’s energy-efficient design, with shuttles often utilizing regenerative braking, lowers power consumption. Reduced product damage and improved inventory accuracy further contribute to a compelling total cost of ownership (TCO) and rapid ROI.
Industry-Specific Applications
The inherent flexibility of the four-way shuttle solution makes it exceptionally effective across a diverse industrial landscape:
- Cold Chain Logistics & Food Distribution: In temperature-controlled environments where space is at a premium and energy costs are high, our solution excels. The high-density storage reduces the cooled volume, leading to significant energy savings. Shuttles can be configured for freezer-grade operation, ensuring reliable performance at sub-zero temperatures while maintaining precise inventory rotation (FIFO/FEFO).
- Spare Parts & MRO (Maintenance, Repair, and Operations): For businesses managing vast SKU counts with highly variable demand, the system’s ability to store thousands of different items in a compact area is invaluable. Its high throughput ensures fast retrieval of critical spare parts, minimizing equipment downtime for manufacturing and service clients.
- Apparel & E-commerce Fulfillment: Facing extreme seasonality and a vast array of product sizes, e-commerce and apparel distributors benefit from the system’s adaptability. During peak seasons, the software can dynamically prioritize fast-moving SKUs, placing them in “hot zones” for quicker access. The system efficiently handles single-item picking from totes, directly supporting goods-to-person stations.
- Precision Manufacturing & Kitting: In manufacturing environments requiring just-in-sequence delivery of components to assembly lines, the four-way shuttle system provides deterministic throughput times. It can manage complex kitting operations, where multiple components for a single assembly are retrieved simultaneously by coordinated shuttles and delivered in sync with production takt time.
Our End-to-End Partnership
We believe in delivering not just a system, but a guaranteed outcome. Our comprehensive service framework ensures a smooth journey and long-term operational supremacy:
- Precision Site Assessment & Digital Twin Development: Our process begins with advanced 3D laser scanning of your facility to create a millimeter-accurate digital twin. We analyze your current workflow data, peak forecasts, and growth plans to model the optimal system configuration in a virtual environment before any physical commitment.
- Bespoke Engineering & Simulation-Driven Design: Our engineering team develops a fully customized solution. We run extensive discrete-event simulations on the digital twin to validate throughput, identify bottlenecks, and optimize the shuttle fleet size and storage layout, ensuring the design meets your specific KPIs.
- Supervised Installation, Commissioning & Systems Integration: Our certified project managers and technicians oversee every installation phase. We handle the complete electrical fit-out, PLC programming, and the deployment of our Synergy Ware Control Suite, ensuring flawless integration with your existing WMS and material flow points (e.g., conveyors, palletizers).
- Comprehensive Training & Knowledge Transfer: We conduct structured training programs for your operators, maintenance engineers, and IT staff, empowering your team to confidently manage, monitor, and perform basic troubleshooting on the system.
- Proactive After-Sales Care & Performance Optimization: Our partnership continues post-go-live. We offer tiered service agreements featuring remote system health monitoring, predictive maintenance alerts, scheduled on-site inspections, and software updates that continuously enhance functionality and efficiency. Our dedicated support portal provides 24/7 access to technical documentation and expert assistance.
Conclusion: Building the Adaptive Warehouse of the Future
The Four Way Shuttle Warehouse Solution is more than an automation project; it is a strategic investment in building a logistics infrastructure that is as agile and data-driven as your business demands. It transforms static storage into a dynamic, intelligent asset that responds in real-time to market fluctuations. For distributors and end-users aiming to lead in efficiency, accuracy, and scalability, this solution offers a clear path forward. Partner with us to implement a system that not only solves today’s challenges but is inherently designed to evolve with the opportunities of tomorrow.
Ready to explore how a Four Way Shuttle Warehouse Solution can redefine your operational potential? Contact our solutions consulting team for a detailed feasibility analysis and a virtual tour of your future warehouse.
