Introduction
Push-Back Racking emerges as a strategic answer, offering a compelling alternative to traditional selective pallet racking and drive-in systems. It is engineered for operations that handle multiple SKUs per lane but require deeper storage than single-depth racks can provide, all while maintaining better selectivity than drive-in alternatives. For distributors seeking a reliable, high-value product for their portfolio, and for end-users aiming to drastically improve their storage footprint, understanding this system is the first step toward a transformative warehouse upgrade.
Core Principles and Design Features of Push-Back Racking

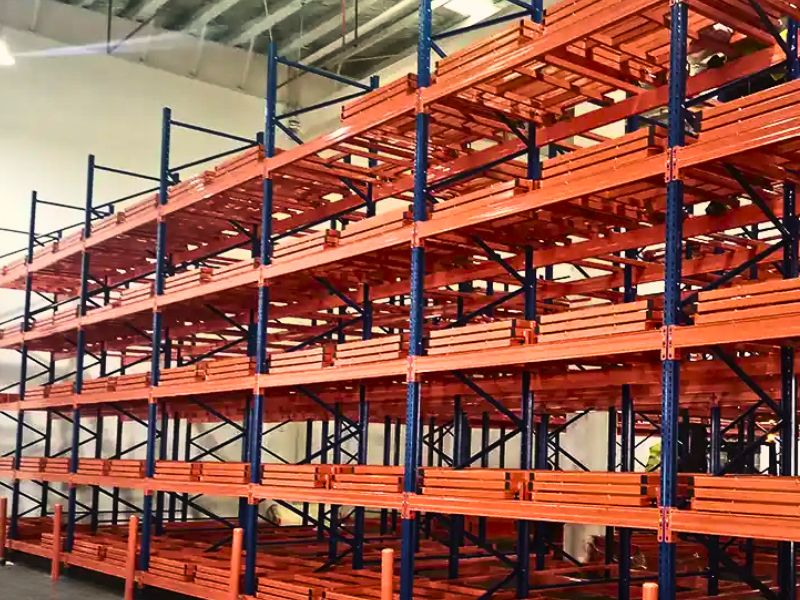

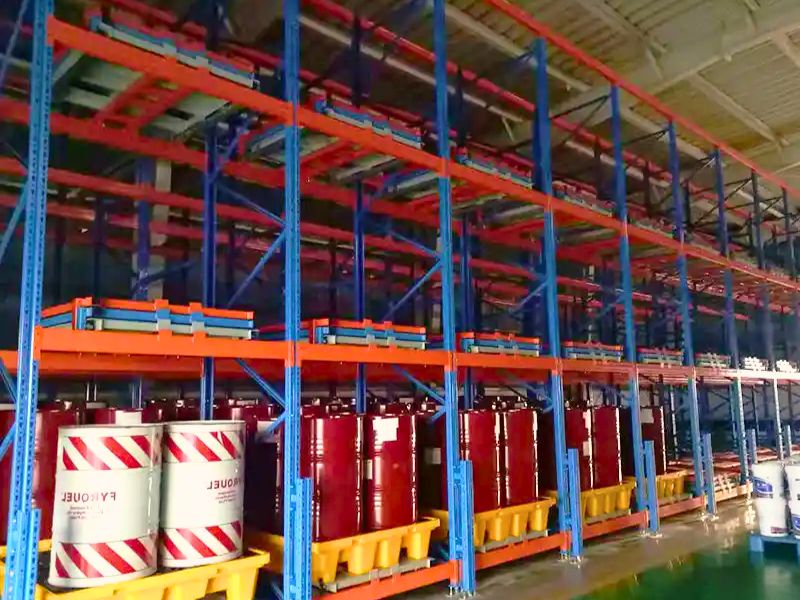

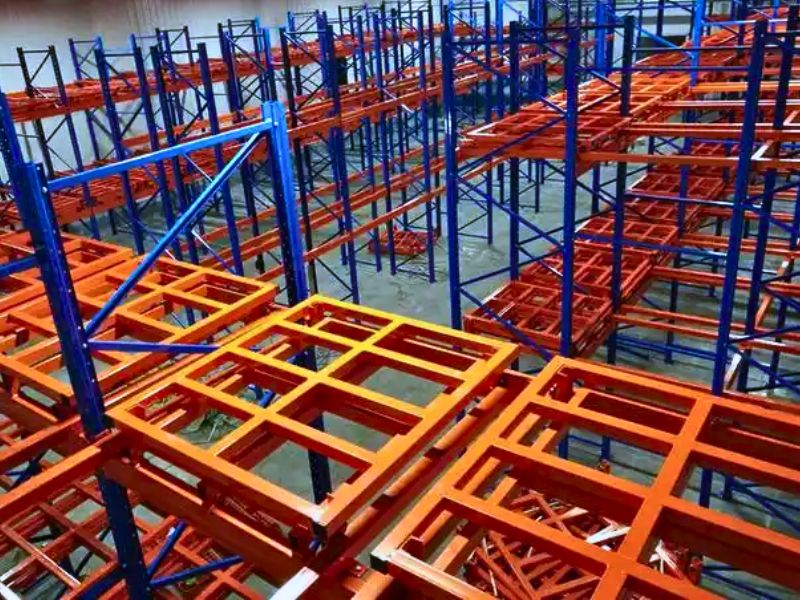

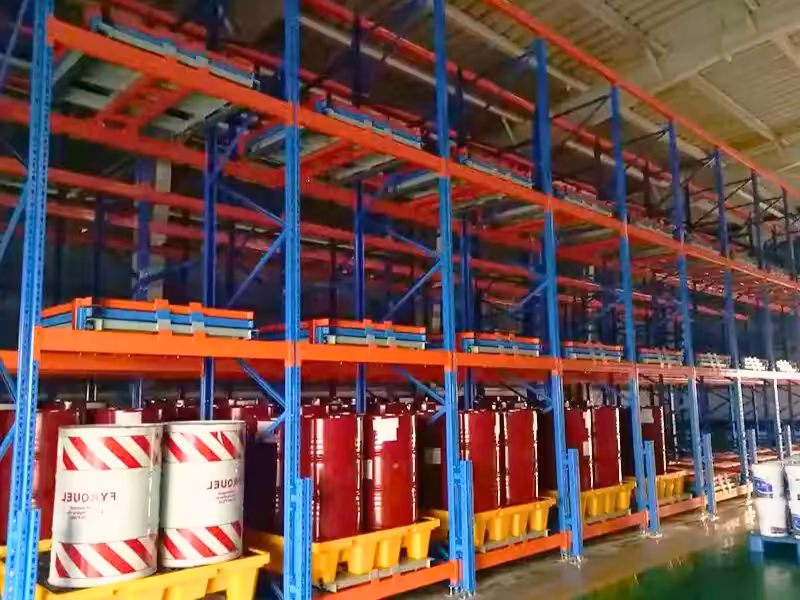

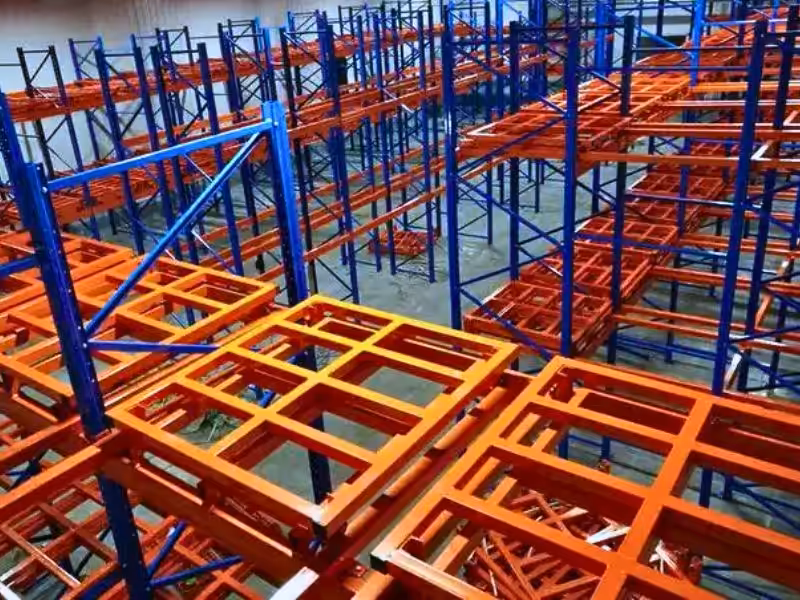

At its heart, Push-Back Racking is a last-in, first-out (LIFO) pallet storage system that utilizes a series of nested carts on inclined rails within each storage lane. This elegant mechanical design facilitates high-density storage with relative accessibility.
- The Inclined Rail and Cart Mechanism: Each storage lane, typically ranging from 2 to 5 pallets deep, is equipped with a slight downward slope from the loading face to the back. Specially designed wheeled carts sit on these rails. When a new pallet is loaded, it pushes the existing line of carts (and their pallets) backward. Retrieval is the reverse process; removing the front pallet allows the carts behind to gently roll forward to the picking position, driven by gravity.
- High-Density Storage with Selective Access: Unlike drive-in systems where you must access the last pallet first (LIFO in its purest, often inconvenient form), Push-Back Racking offers lane selectivity. Each lane operates independently, allowing operators to access any product lane without disturbing others. This provides a superior blend of density and SKU accessibility.
- Structural Robustness and Safety: A quality Push-Back system is built to endure constant dynamic loads. Key features include:
- Heavy-duty structural steel frames designed for specific load capacities and seismic considerations.
- Precision-engineered carts with high-load bearings and safety stops to prevent accidental roll-out.
- Integrated safety locks and lane indicators to enhance operational safety during loading and unloading.
Ideal Applications and Industry-Specific Advantages
The versatility of Push-Back Racking makes it a perfect fit for a wide array of industries where bulk storage of medium-to-high-turnover goods is required. Its advantages are magnified when aligned with specific operational needs.
- Food & Beverage and Brewing:
- Advantage: Perfect for storing large quantities of the same SKU with different batch or expiration dates (LIFO is ideal for date-code rotation). The system efficiently handles full-pallet loads of bottled water, canned goods, or kegs.
- Benefit: Maximizes space in distribution centers, ensures proper stock rotation automatically, and speeds up loading for outbound shipments of high-volume products.
- Cold Storage and Logistics:
- Advantage: In extremely expensive cold storage environments, maximizing cubic space is paramount. Push-Back Racking significantly increases pallet positions compared to selective racking without the complexity and spoilage risk of deep-drive systems.
- Benefit: Drastically reduces the cost per stored pallet by improving storage density by up to 60%, leading to substantial savings on energy and facility costs.
- Consumer Packaged Goods and Retail Distribution:
- Advantage: Well-suited for warehouses supporting large retail chains that require deep storage of promotional items, seasonal products, or high-volume staple goods.
- Benefit: Provides the buffer storage needed for demand peaks while maintaining better accessibility than block-stacking, reducing handling time and product damage.
- Manufacturing and Chemicals:
- Advantage: Offers organized, high-density storage for raw materials or finished goods that are palletized and stored in batches. The robust design handles heavy loads consistently.
- Benefit: Improves factory floor space utilization, keeps inventory organized and accessible for production lines, and enhances safety by eliminating unstable block-stacking.
Our Comprehensive Service and Solution
We understand that specifying and implementing a Push-Back Racking system is a significant decision. Our commitment extends far beyond supplying high-quality equipment; we deliver a complete, worry-free solution tailored to your unique challenges.
- Consultation and Customized Design:
- Our process begins with a thorough analysis of your SKU profile, pallet specifications, throughput rates, and facility dimensions.
- We use advanced CAD and warehouse simulation tools to design a layout that optimizes the number of lanes, depth configuration, and overall workflow integration.
- We provide detailed load calculations and structural drawings for seamless approval and integration with your building’s specifications.
- Precision Manufacturing and Quality Assurance:
- All components—from the structural uprights and beams to the specialized carts and rails—are manufactured in our controlled facilities.
- We employ automated cutting, robotic welding, and a multi-stage powder-coating process to ensure durability, corrosion resistance, and a flawless finish.
- Every cart assembly undergoes rigorous functional testing to guarantee smooth rolling and reliable operation under load.
- Professional Installation and Commissioning:
- Our certified installation teams ensure precise and efficient assembly, adhering to the highest safety and quality standards.
- We manage the entire installation process, including coordination with other trades, to minimize disruption to your ongoing operations.
- Post-installation, we conduct a full system commissioning and provide hands-on operational training for your warehouse staff.
- Ongoing Support and Warehouse Optimization:
- Our partnership doesn’t end at installation. We offer comprehensive after-sales support, including spare parts programs and preventive maintenance inspections.
- As your business evolves, our team can reassess your layout and recommend optimizations or integrations with other systems (like the Pallet Conveying Systems or Stacker Crane ASRS we also provide) to form a complete, automated storage solution.
Conclusion
Push-Back Racking is more than just a storage method; it is a strategic tool for space optimization and operational streamlining. For distributors, it represents a high-value, solution-oriented product that meets a clear market need. For end-user clients, it delivers immediate and measurable returns through increased storage capacity, improved inventory control, and reduced operating costs. By choosing to partner with us, you gain not only a superior Push-Back System but also the expertise and support to ensure its success as a cornerstone of your efficient warehouse.
Ready to transform your storage density and operational flow? Contact our solutions team today for a free, no-obligation warehouse assessment and discover how a tailored Push-Back Racking solution can unlock your facility’s true potential.
